BenchVent BV300S Recirculating Airbrush Spray Booth

Description

Art No: BV300S – BenchVent A3 Portable Airbrush Spray Booth

The Ultimate Portable Spray Booth!

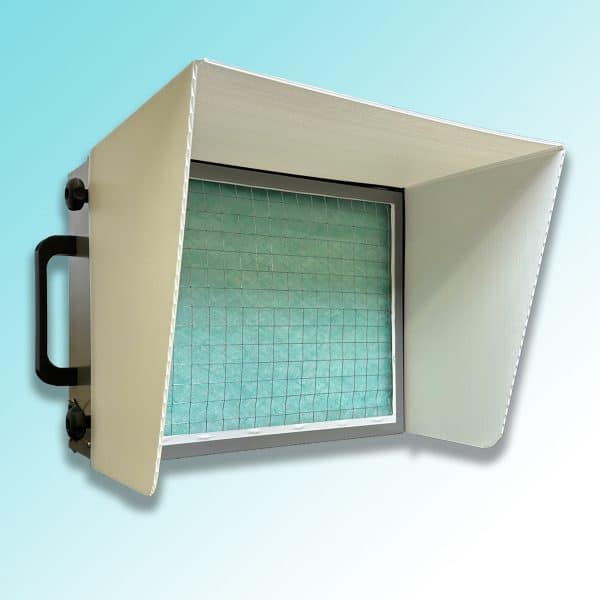

The BV300S is a recirculatory portable airbrush spray booth designed for use in areas where it’s not possible to use a ducted spray booth. It is suitable for use when working on art and graphics project, scale model painting, textile airbrushing and when using aerosol glue, lacquers and fixatives. This airbrush spray booth can accommodate artwork up to A3 size.

Portable Spray Booth applications:

• Aerosol adhesives – glue booth for Spray Mount, aerosol lacquers and fixatives and airbrush sprays
• Airbrush painting
• Soldering
• Light grinding
• Cleaning with solvents etc

Features

• Steel construction finished in grey
• Corrugated plastic replaceable spray/fume shield
• Back stand (also serves as carry handle)
• Particulate filter
• Carbon impregnated fibre filter
• Axial fan
• External rotor motor type
• Brushless, UL, VDE and CSA approved
• Sealed electrical wiring and switch
• Downstream of filters

All BenchVent filtration and extraction systems carry a lifetime warranty!

Download the datasheet for more information: BV300S Datasheet

Operation

The BV300S is quiet in operation and can be assembled in seconds. It’s portable, simply place on it a desk, bench or trolley, plug in and switch on.

Users can position it two ways, reclining or upright, to suit the work they are doing:

• Reclining position (on back-stand) – For Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. BV300S accommodates artwork up to A3.
• Upright position – For model sprays and airbrush use – light grinding particles – solder fume displacement – general solvent dilution etc.

Filtration

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The carbon impregnated fibre filter (behind intake) assists in the reduction of solvent odours. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced.

Specification

Model No.	Fan Motor  * Spec.	Air Volume at Free Air	Ave. Air Velocity at Filter Face	Ave. Air Velocity at Hood Face	Noise Level LAeq dB(A)
BV300S	230V 50Hz 40W	325 m3/hr	0.50m/sec	0.32 m/sec	59 dB(A)

* 110V 60Hz available if required.

These portable spray booth units are designed predominantly for studio / classroom / workshop cleanliness and for immediate operator protection from concentrations of airborne contaminants. They are not recommended for continual usage, i.e. production applications, particularly in confined and/or badly ventilated areas.(See extraction cabinets BV300S-D, BV200H-D & BV100H-D for complete vapour extraction or BV660H-C  and BV930H-C for higher specification filtration.



Additional information

Weight	11.5 kg
Voltage	240V, 110V
Dimensions	510x385x350mm (wxhxd) Internal Width : 505mm 10kg Weight
Description	Steel construction finished in grey –– plastic replaceable spray/fume shield – back stand / carry handle – particulate filter – carbon impregnated fibre filter – axial fan, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filters.
Air Volume at Free Air	325 m3/hr
Ave. Air Velocity at Filter Face	0.50 m/sec
Ave. Air Velocity at Hood Face	0.32 m/sec
Fan Motor Spec	230V 50Hz 40W, 115V 60Hz 45W
Filters	Particle Filter: IFA3: – Charcoal Filter CHA3 – Filter Kit: FKA3
Noise Level LAeq dB(A)	59 db(A)
